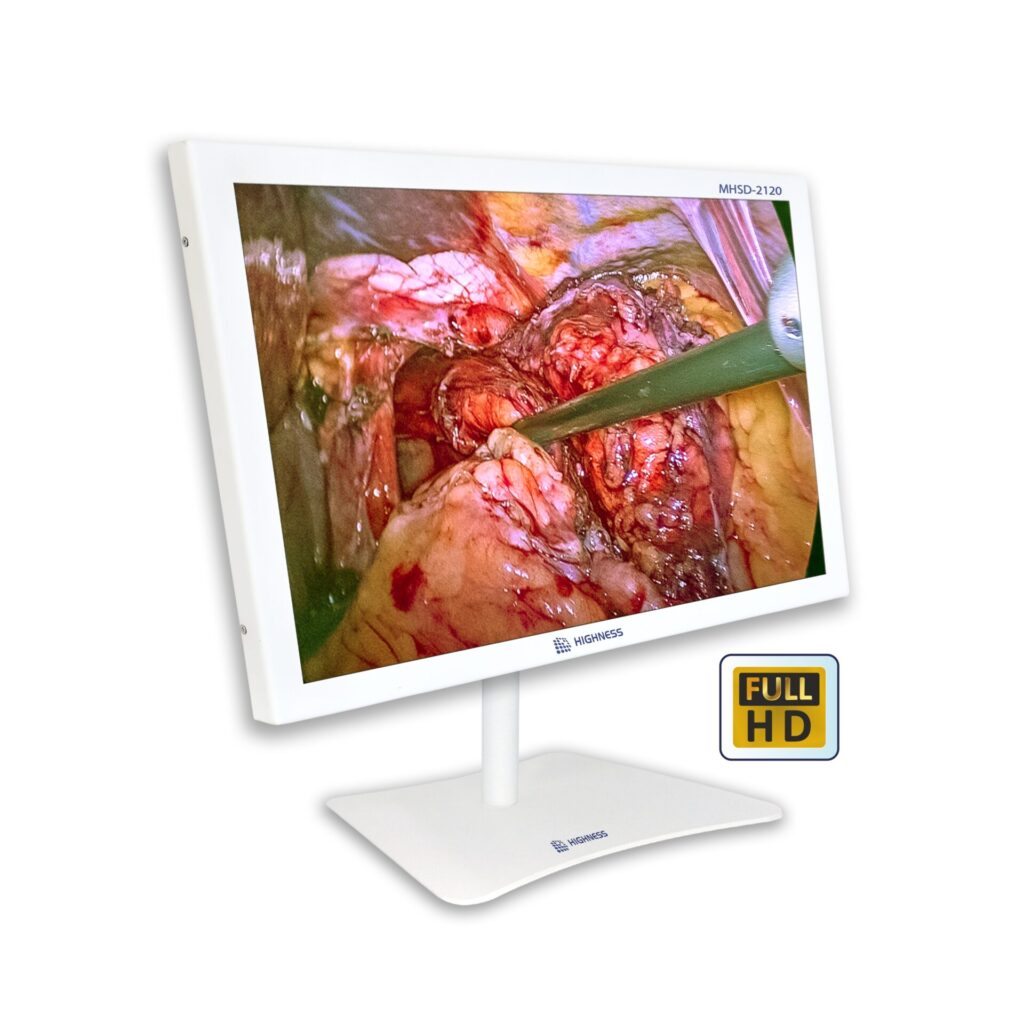

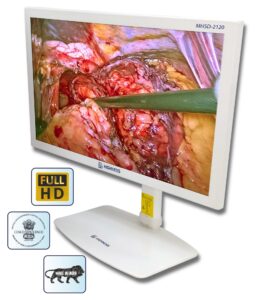

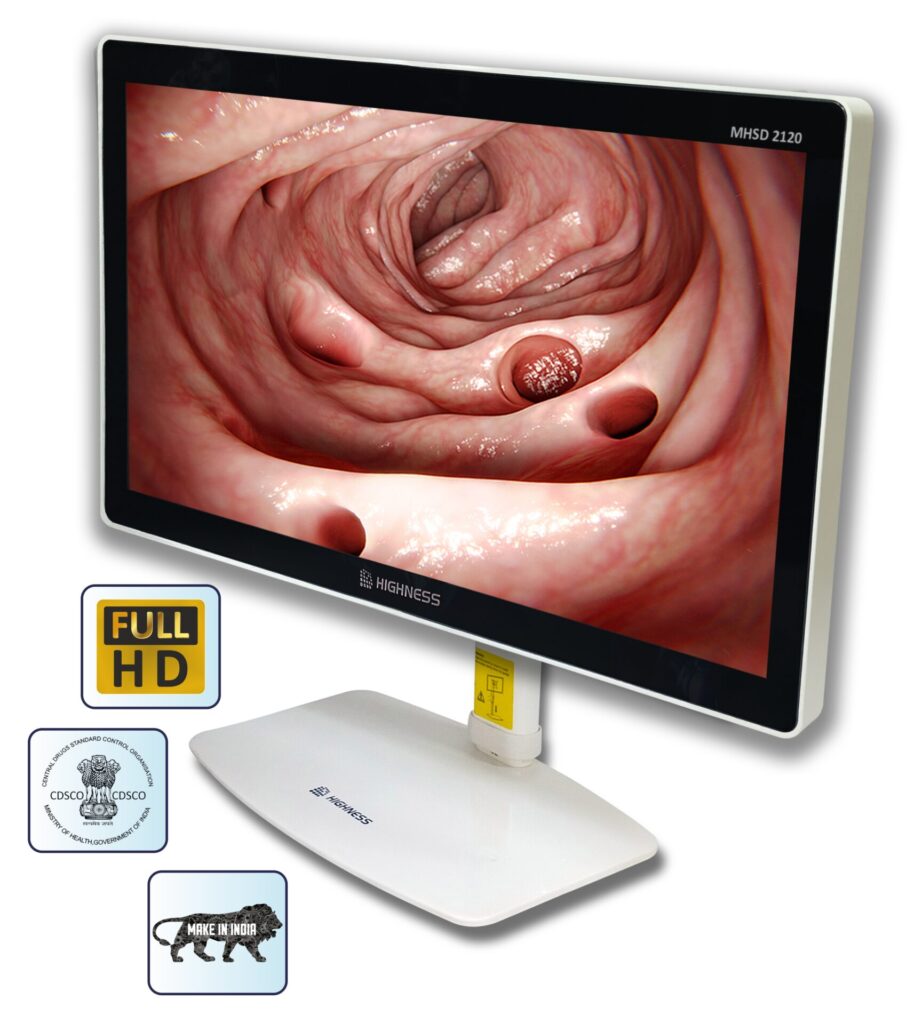

MHSD-2120
|
Screen Technology |
TFT AM LCD |
|
Active Screen Size (Diagonal) |
21.5“ |
|
Active Screen Size (H x V) |
476.64 x 268.11 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920 x 1080 |
|
Pixel Pitch (H x V) |
248.25 x 248.25 µm |
|
Viewing Angle (H, V) |
178°, 178° |
|
Maximum Luminance |
300 cd/m² |
|
Contrast Ratio |
3000:1 |
|
Color |
16.7 Million |
|
Response Time (Tr + Tf ) |
18 ms |
|
Video Inputs Signals |
Digital: ‐ 3G-SDI & DVI / HDMI Analog: – VGA, CVBS / S-Video |
|
Interface Port |
Digital: – BNC & DVI / HDMI Analog: – 15 Pin D-Sub, RCA / Mini Din |
|
Video Outputs Signals |
Digital: – 3G-SDI |
|
Other Mode |
PIP & POP |
|
Power Requirements |
AC 240V |
|
Power Consumption |
55W Max |
|
Power Saving |
EPA, VESA Standard |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (Non-Condensing) |
|
Housing Color |
White |
|
Housing Material |
Metal |
|

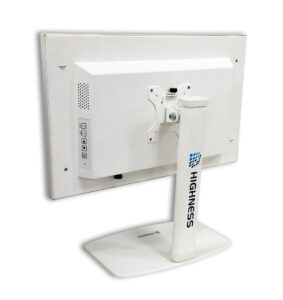

Mounting Standard |
VESA (100 mm) |
