mhsd5500rc

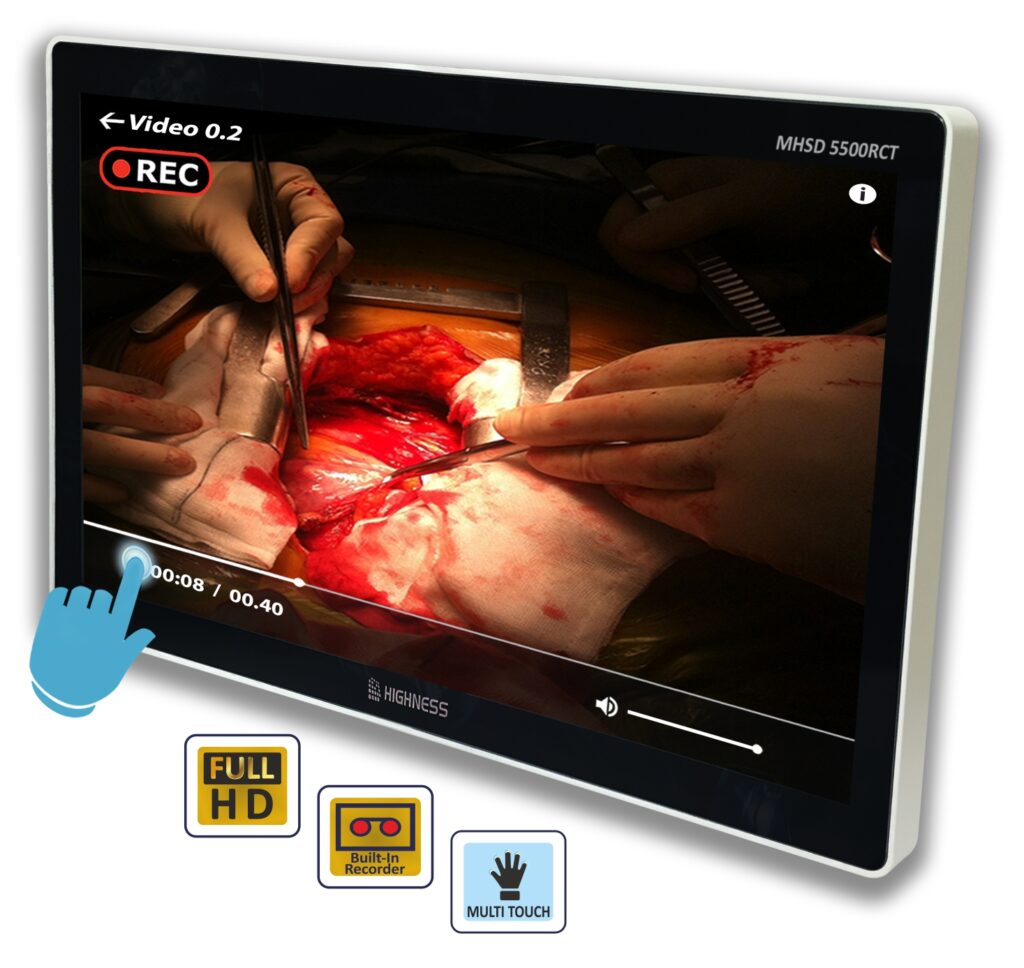

55" Built-In Recorder MHSD-5500RC

Screen Technology

TFT AM LCD

Active Screen Size (Diagonal)

55″

Active Screen Size (H x V)

1209.6 x 680.4 mm

Aspect Ratio

16.9

Resolution

1920 x 1080

Pixel Pitch

0.630 mm

Viewing Angle (H,V)

178°, 178°

Maximum Luminance

450 cd/m²

Contrast Ratio

1100:1

Color

16.7 Million

Response Time (Tr + Tf )

16 ms

Video Inputs Signals

SDI/ HDMI/ DVI & VGA



(Please select one from above option)

Interface Port

Digital input:- SDI, HDMI Port, DVI
(Optional)



Analog input:- 15 Pin D-Sub

Video Outputs Signals

Digital output: – HDMI & VGA

Recording System

In-Built, fully integrated with Monitor



1TB storage (expandable to 2TB)



Simultaneous Recording & Video
Display



Other Features-



Recording Start & Pause Button



Screenshot Button



USB for copying recorded videos



Ethernet for connectivity with Hospital
/ clinic network



Optional Features-



Wi-Fi, Bluetooth



Output Signal for connecting to
slave/passive monitor

Power Requirements (Nominal)

AC 100-240V

Power Consumption (Nominal)

90W Max

Power Saving

EPA, VESA Standard

Operating Temperature

0 to +50°C

Storage Temperature

-20 to +60°C

Relative Humidity

10% to 90% (Non Condensing)

Housing Color

White

Housing Material

Metal

Mounting Standard

Wall Mount
